Laminar Air flow cabinets

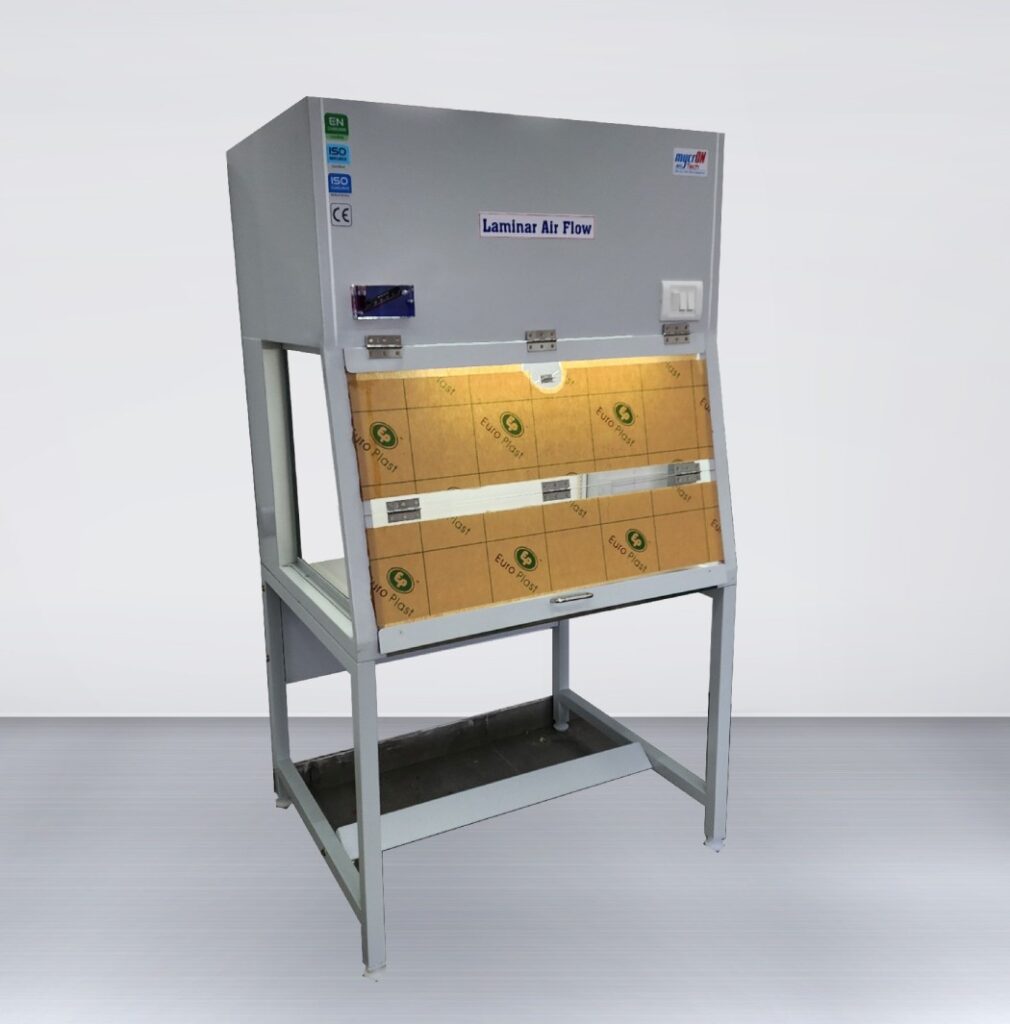

Mycron Air Tech presents a Laminar Air flow cabinet fabricated with MS/GI powder coated, stainless steel 304 / 316 grade and plywood box. It is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials.

Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user. The cabinet is usually made of Wood, MS/GI Powder Coated and stainless steel (grade 304/316).

Such hoods exist in horizontal, vertical and ceiling suspended configurations. Laminar flow cabinets may have a UV Lamp to sterilize the interior and contents before usage to prevent contamination of experiment.

UV lamps are usually kept on for 15 minutes to sterilize the interior and no contact is to be made with a laminar flow hood during this time. During this time, scientists normally prepare other materials to maximize efficiency.

It is important to switch this light off during use, to limit exposure to skin and eyes as stray ultraviolet light emissions can cause cancer and cataracts.

S.No Features Specifications
1 Available Sizes w.r.t Working Area in feet’s (LxBxH) 2x2x2 , 3x2x2, 4x2x2, 6x2x2
2 Material of Construction MS/GI Power coated, SS 304/316
3 MOC of Working Area SS 304/316
4 HEPA Filter w.r.t Working Area in mm (LxBxH) 0.3 µ Mini Plate 610x610x75, 915x610x75, 1220x610x75
5 Pre Filter 10 µ as per Req
6 Storage Cabinet Yes, as per Req
7 Motor & Blower Dynamically balanced Motor with Aluminum/PVC Blower
8 Door 5mm Acrylic Sliding/Foldable Door
9 Gas Supply Provision Yes
10 Illumination Yes, LED
11 UV Lamb Yes
12 UV Hour meter Yes
13 Power Socket Yes, 5A
14 Pressure Gauge/ mano meter Yes
15 Power Required Single Phase 230V/50 Hz
16 Total Power Consumption 2KW
17 Noise level 70 db +/- 5 db
18 Vibration Level < 2.5 µm (0.000025m)
