Clean Room Pass Box
Mycron Air Tech presents its Clean Room pass box equipment, fabricated with MS/GI powder coated and stainless steel 304 / 316 grades are capable of eradicating pollutants completely from the air. Such pass box exists in Static and Dynamic configurations.
Static Pass Box
These static pass boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to know the material is kept inside and indicating lamp, these static pass boxes provide excellent working performance in the clean room unit. An interlock guard system controls the inlet and the outlet of pass box not be opened at the same time, in order to prevent the cross contamination.

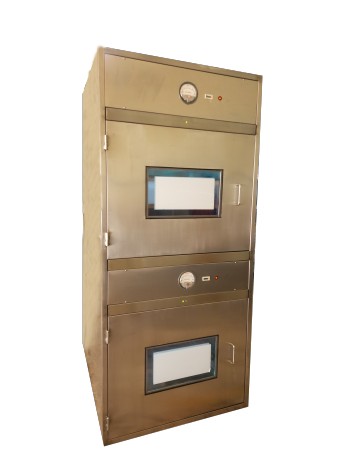

Dynamic Pass Box
The Dynamic Pass Box equipments are made of MS/GI powder coated and stainless steel 304 / 316 grades with international quality standard components including mechanically or electrically interlocked doors and UV light.These dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 0.3µ efficiency and supply filter made of aluminum with 99.999% down to 0.3 µ. An interlock guard system controls the inlet and the outlet of pass box not be opened at the same time, in order to prevent the cross contamination.
Sl.No | Features | Specifications |
1 | Available Sizes w.r.t Working Area in feet’s (LxBxH) | 2x2x2 , 3x3x2 and as per Req. |
2 | Material of Construction | SS 304/316 |
3 | MOC of Working Area | SS 304/317 |
4 | HEPA Filter w.r.t Working Area in mm (LxBxH) | 0.3 µ Mini Plate as per Req. (Dynamic Pass box only) |
5 | Pre Filter | 10 µ as per Req. |
6 | Motor & Blower | Dynamically balanced Motor with Aluminum/PVC Blower |
7 | Protections | Electro Magnet Inter locking for both doors, push button and Door position indicator |
8 | Door | SS 304/317 with Static Handles |
9 | Illumination | Yes, LED |
10 | UV Lamb | Yes |
11 | UV Hour meter | Yes |
12 | Pressure Gauge | Yes (Dynamic Pass box only) |
13 | Power Required | Three Phase 230V/50 Hz |
14 | Total Power Consumption | 1KW |
15 | Noise level | 65 db +/- 5 db |
16 | Vibration Level | < 2.5 µm (0.000025m) |
