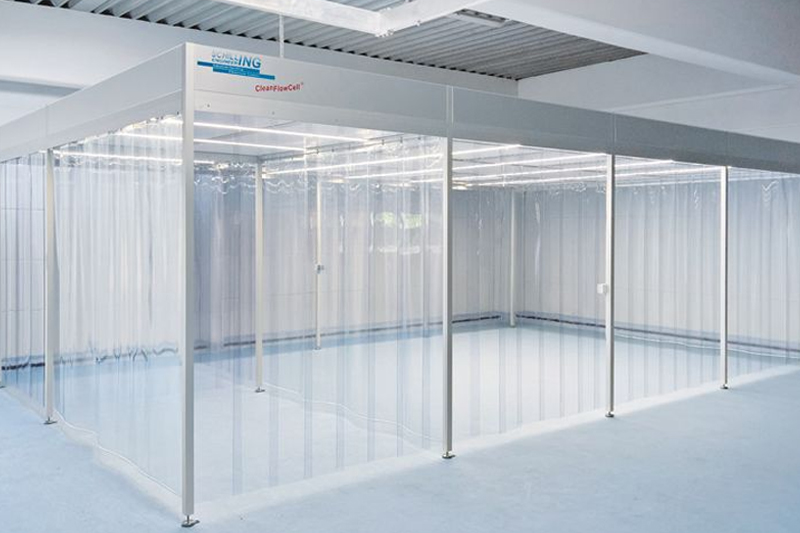

Modular Clean Room Tent
Mycron Air tech presents it is a Modular clean room tent to provide outstanding performance as well as aesthetic appeal. Clean room tents are composed of walls of heavy plastic sheeting supported by a strong metal frame. This superior construction provides the flexibility to easily assemble, reconfigure and move clean room tents. Clean room tents are available in both vertical and horizontal air flow configurations. All clean room tents from Clean Air Products are equipped with HEPA filtration systems to provide either positive or negative air pressure.
Soft wall clean room tents are available from Class 100,000 to Class 10. Clean room tents are a low-cost option for industries seeking high-performance particulate controlled environments. The Clean Room Tent is a designed and constructed room in which the air supply, air distribution, filtration of air supply, materials of construction, and operating procedures, are regulated to control airborne particle concentrations to meet appropriate cleanliness levels.
Sl.No | Features | Specifications |
1 | Available Sizes w.r.t Working Area in feet’s (LxBxH) | 6x6x6 , 8x8x8, 10x10x10 as per Req. |
2 | Material of Construction | MS/GI Power coated, SS 304/316 |
3 | HEPA Filter | 0.3 µ Mini Plate, as per Req. |
4 | Pre Filter | 10 µ as per Req. |
5 | Motor & Blower | Dynamically balanced Motor with Aluminum/PVC Blower |
6 | Door | PVC Strip Curtains |
7 | Illumination | Yes, LED |
8 | Pressure Gauge | Yes |
9 | Power Required | Single Phase 230V/50 Hz |
10 | Total Power Consumption | 2-5 KW |
11 | Noise level | 70 db +/- 5 db |
12 | Vibration Level | < 2.5 µm (0.000025m) |
